Automatic Weighing Packing Machinery for Cereal ,Nuts,Seeds

FOB Reference Price:Get Latest Price
US $10,000-22,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SUN-520W
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Condition:
New
Function:
Filling, Sealing, Wrapping
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Granular, Slice, Creal,Strip Products
Packaging Type:
Bags
Packaging Material:
Plastic, PE Film/Foil
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
220V/380V/110V
Power:
2.2KW
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SunChon
Dimension(L*W*H):
1500x11400x1540 MM
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Packing Speed:
5-70Bags/Minute
Packing material:
Plastic Film
Usage:
Bag Making
Volume Each Bag:
2000ML
Machine Made Of:
Mild Steel/Stainless Steel
Dosing:
Multi Heads Weigher
Bag Type:
Pillow Bag, Gusseted Bag, Quad Seal Bag
Operation:
Schneider /Simons Touch Screen
Control System:
Schneider / Simons PLC
Supply Ability
Supply Ability:
200 Set/Sets per Month Automatic Creal Packing Machine
Packaging & Delivery
Packaging Details
1:Machine will working 24 Hours.
2:Disassembly.
3:Clean and oil.
4:Wrapping film.
5:Wooden case.
Port
GuangZhou,ShenZhen,FoShan
Product Description

Automatic Weighing Packaging Machinery for Cereal

This machine adopts frequency converter and high precision pump feeding system. It’s able to automatically complete the process of bag making,measuring, filling, sealing, cutting, easy-tear cutting, date printing, linking etc.


Features and Parameters
1. Siemens PLC control with stable and reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, and finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance; belt is resistant to be worn-out.
4. All the processes including conveying material, measuring, filling, bagging, date printing and finished good conveying are
5. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.

Packing Speed
5-60 Bags/Min
Volume
2000ML
Bag Width
150-250 MM
Bag Length
80-400 MM
Max Width
520 MM
Thickness
0.04-0.09 MM
Material
OPP/CPP PET/PE PET-AL/PE Lamination Film
Weight
550 Kg
Air Consumption
0.8Mpa 0.4m³/Min
Power Supply
2.2Kw 220V 50Hz
Dimension LxWxH
1500x11400x1540 MM
Application&Samples

Packing Machine , Collar type with multi heads weigher for packing Granule, Slice, and Strip Products such as sugar, candy, Jerry, seeds,dried fruit,nuts, biscuits, chips, salad, herbs,chocolate,frozen vegetable etc within 2000ML.

Work process

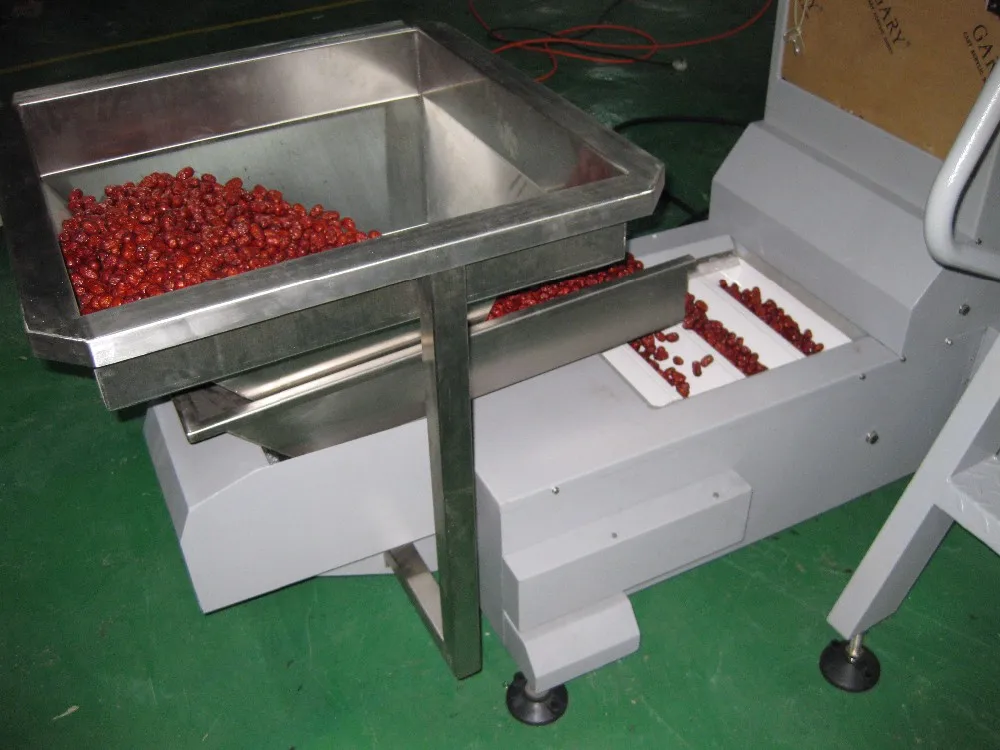

Product transport

Material to be delivered through the automatic conveyor to the metering device

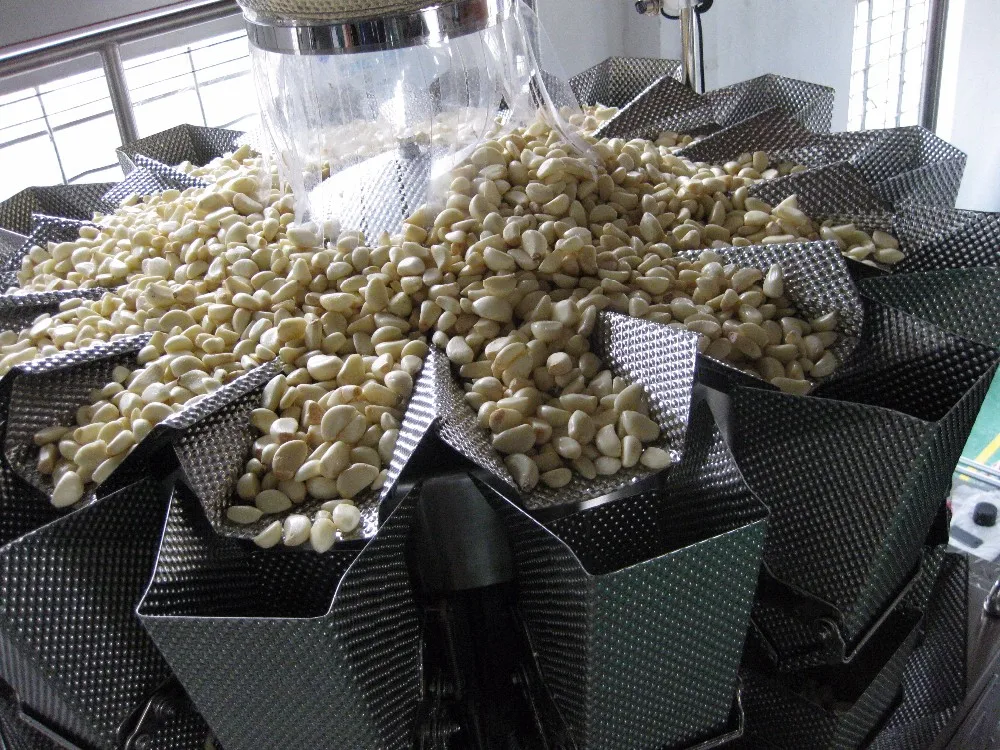

Weighing
Weighing the product by multi-head weigher(2,4,8,10,14,etc) scale.The measure accuracy is 0.5 to 2.0 gram

Filling

Filling the product into the packing bag after weighing process.

Sealing

Longitudinal sealing and down film bag.We adopt intelligent thermostat to control the process temperature and the precision is ±1℃.

Cutting

Both ends up and down the sealing and cutting.

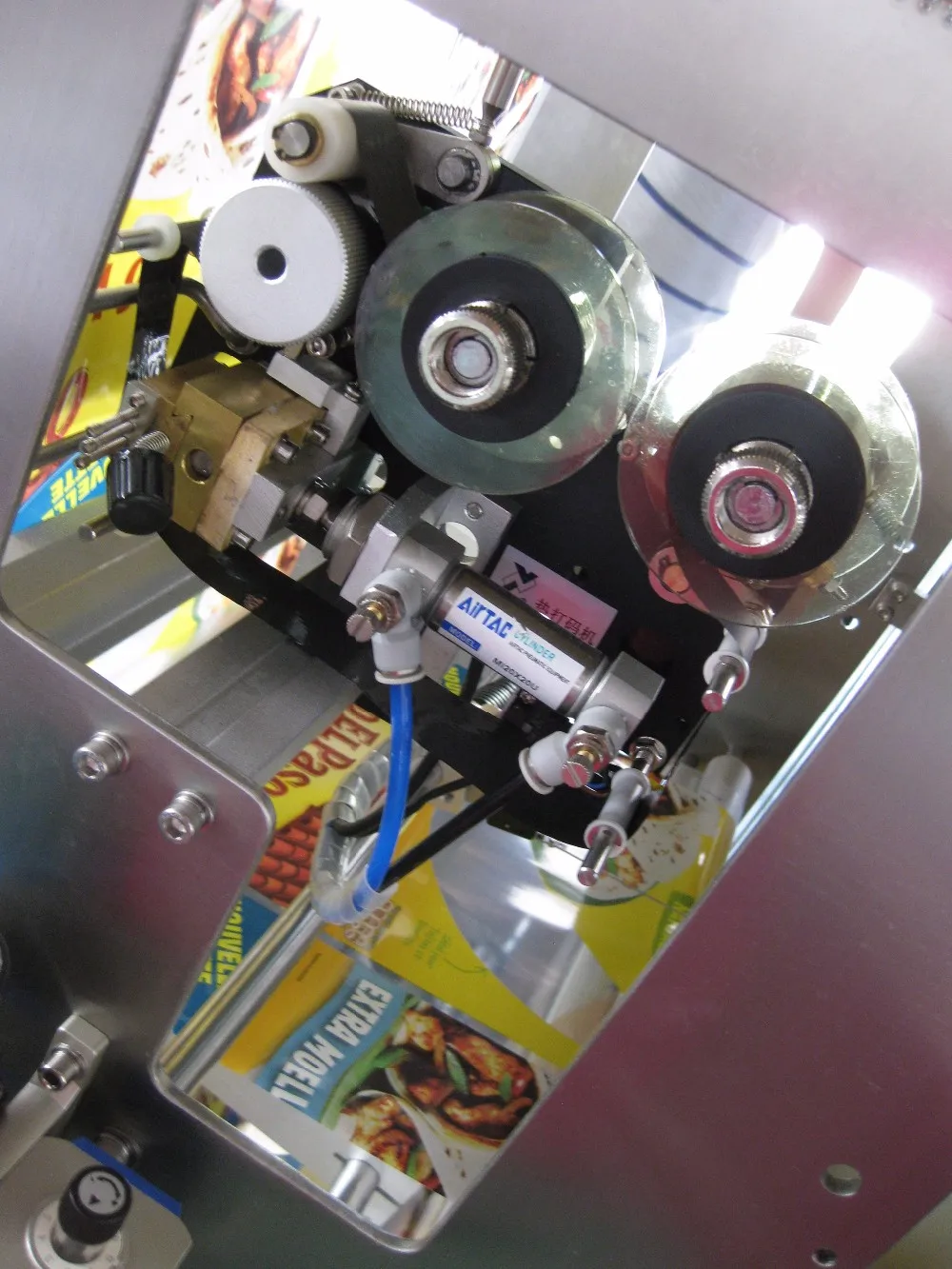

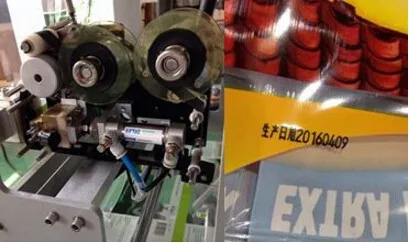

Date printing

Imported date printer prints production date, batch number, etc.

Our Service

Pre-Sales Service

* 24 hours online service.
* Offer quick and accurate quotation.
* Technical support, we can offer video for debugging.

After-Sales Service

* Provide installation and maintenance service.
* Solution will be provided in 24 hours.

How To Contact Us
FAQ

1. How to choose the machine?
Before offering the option to you, you need to let us know:
a. What is your packing product?
b. What is the filling weight per bag?
c. What is the bag type and bag size? Could you provide any pics?
d. What is voltage and Hertz in your local?


2: Are you a factory or a trading company ?
We are a factory with more than 10 years experience, and especially R&D, manufacture and sell various packing euipments.


3: How to learn operation ?
Machine with manual, and we have relative videos on YOUTOBE or email you.


4:How about the payment ?
T/T, L/C, Western Union, Alibaba trade assurance service etc can accept.


5. How can we make sure about the machine quality?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

Our Company

FOSHAN SUNCHON MACHINERY CO., LTD is specializing in vertical packing machine, which has rich experience and proven technique in the field of packing machine. Our equioment has successfully integrating weighing, conveying, feeding, sealing and printing functions.

Nowadays, our machines with good quality develop into multipe series products, which being widely used in packing food, pharmaceuticals, chemical, fodder, toy, hardware accessories. Our equipment is the best options for achieving full automatic production and improving productivity. Our hot sale machines have won the market in China mainland and successfully ecported to Euro, America, Middle East and Asia.
