Professional manufacture In Stainless Steel Automatic Vertical Washing Powder / Detergent Powder Packing Machine

FOB Reference Price:Get Latest Price
US $11,000-15,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SUN-720P
Report Suspicious Activity
Overview
Quick Details
Type:
Other, Other
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Pouch, Stand-up Pouch
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
3.0KW
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SunChon
Weight:
700KG
Dimension(L*W*H):
1800x1250x1780 MM
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Packing Speed:
5-70Bag/Min
Made of:
Mild Steel/Stainless Steel
Volume:
4000ML
Usage:
Produce Bag
Dosing:
Auger Filler
Function:
Feeding,Dosing,Filling,Bagging,Sealing
Bag Shape:
Pillow Bag Gusseted Bag Quad Seal Bag
Control System:
Schneider PLC
Operation:
Schneider Touch Screen
Supply Ability
Supply Ability:
200 Set/Sets per Month Detergent Powder Packing Machine
Packaging & Delivery
Packaging Details
Two or Three Wooden Case
Port
GuangZhou,ShenZhen,FoShan,ShangHai
Product Description

1494819837(1)

Professional packing machinery manufacturers

We can provide you with products of different levels .

We have our own research and development design team , and we can accept product customization .

We strict control production process to make each of the products meet the international standards .



DB`NJYW0AWE0[RNDU](~MR

 Powder Packing Machine STANDARD FEATURES

1.Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
2.Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for complete machine, perfect packaging.
3. With auto warning protection function to minimize loss.
4.With double transporting devices, angle fold devices and retainer devices,function more perfect.
5.Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.




SUN-720
Packing Speed
5-50 Bags/Min
Volume
4000ML
Bag Width
80-450MM
Bag Length
Max 200-350MM


Packaging Film
Max Width
720MM
Thickness
0.04-0.09MM
Material
OPP/CPP PET/PE PET-AL/PELamination

SUN-720
Weight
750KG
Air Consumption
1.0 Mpa 0.4m³/Min
Power Supply
6.0Kw 220V 50Hz
Dimension LxWxH
1800x1250x1780 MM



Details

.jpg

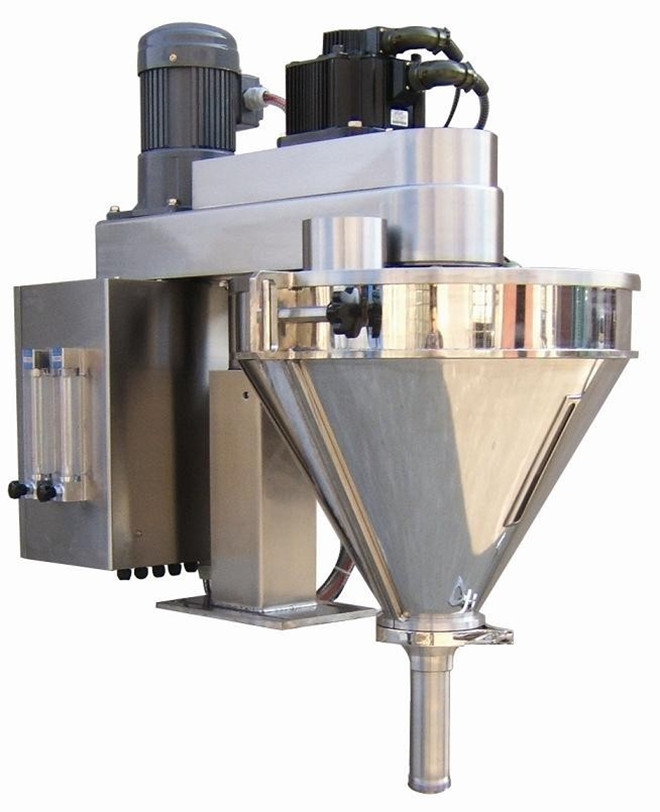

Screw Dosing Device:

ITEM

Screw Dosing Device

Measuring Way

Auger Screw

Packing Weight

100-5000g (Change Screw)

Accuracy

≤±0.3-1%

Packing Speed

20-80bags/min

Power

380(3 or 4 phases);220V(single phase)

Total Power

2.3Kw

Total Weight

150Kg

Component

Servo Motor Controller,PLC,Frequency Motor

Dimension

L)1030 * W) 690 * H)1100mm

Hopper

60L





 - .jpg

Screw Conveyor:

ITEM

Screw Conveyor

Lifting Height

2.2m

Lifting Volume

3m³/h

Specification

Customers Request

(Carbon Steel or Stainless Steel)

Technical Index

The size and weight of the conveying material. 2.Conveying speed and height

Application

.jpg

VFFS Machine with Auger Filler is ideal for wrapping powder product.

(milk powder, coffee powder, flour, spice, cement , curry powder, ect.)

Production Process


Company Information


FOSHAN SUNCHON MACHINERY CO., LTD is specializing in vertical packing machine, which has rich experience and proven technique in the field of packing machine. Our equioment has successfully integrating weighing, conveying, feeding, sealing and printing functions.



Nowadays, our machines with good quality develop into multipe series products, which being widely used in packing food, pharmaceuticals, chemical, fodder, toy, hardware accessories. Our equipment is the best options for achieving full automatic production and improving productivity. Our hot sale machines have won the market in China mainland and successfully ecported to Euro, America, Middle East and Asia.
